Description

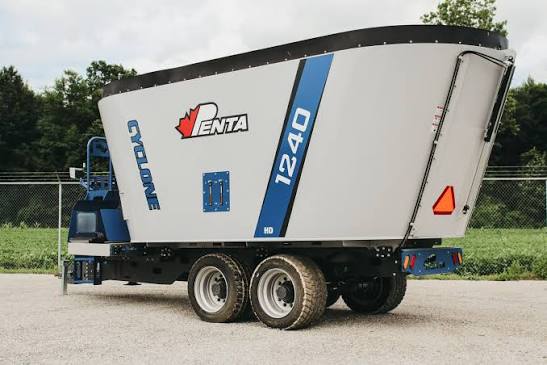

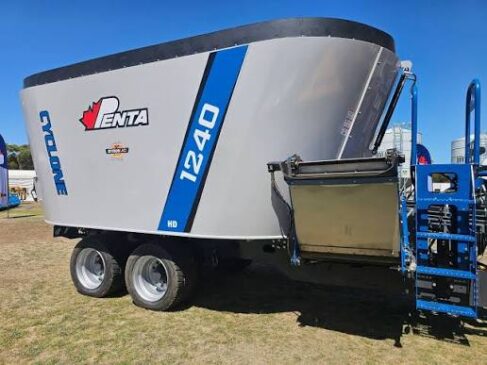

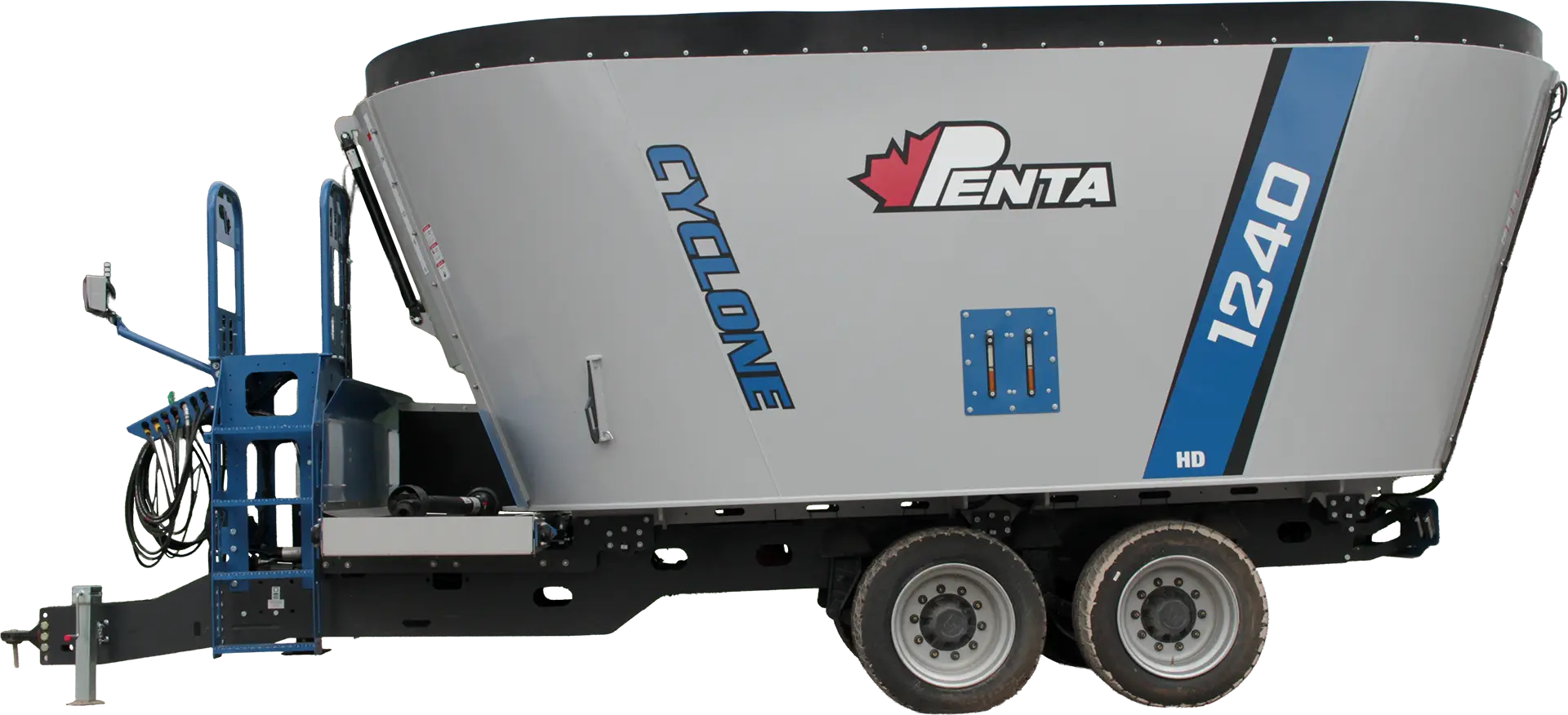

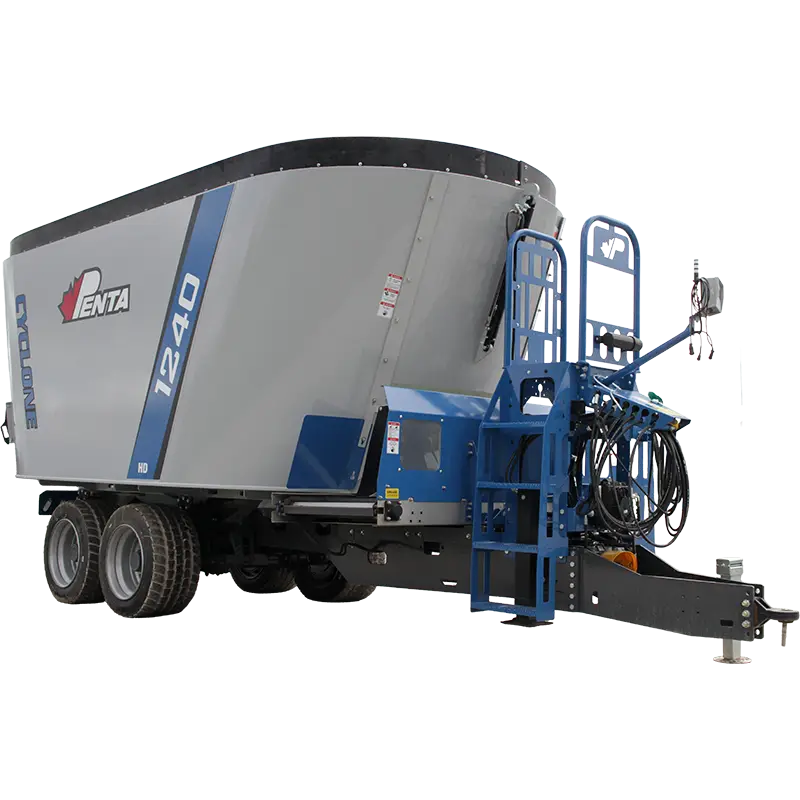

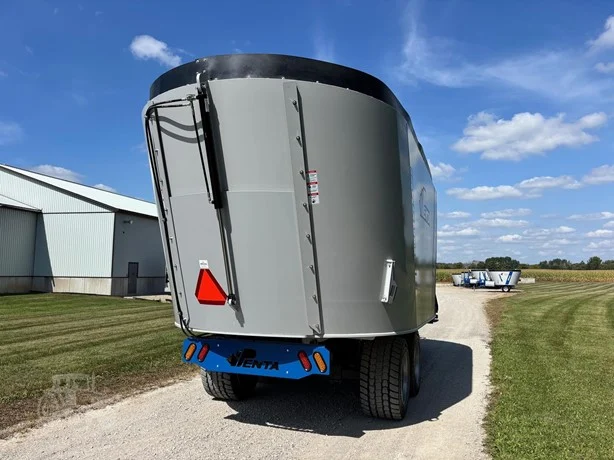

Penta 1240 Mixer
The Penta 1240 Trailer Mixer is built to meet the demands of large-scale feeding operations, offering exceptional capacity and dependable performance. Featuring Penta’s proven vertical mixing technology and heavy-duty construction, the 1240 delivers consistent ration quality, efficient processing, and long-lasting reliability.
Specifications
| CAPACITY WITH 9” RUBBER EXT. | CAPACITY WITH 16” RUBBER EXT. | WIDTH | LENGTH | HEIGHT | MIN HP | EMPTY WEIGHT |
| 1166 Cu/Ft | 1264 Cu/Ft | 111 Inch | 342 Inch | 135 Inch | 190HP | 27,450 LBS |
| 33 m3 | 15.8 m3 | 282 cm | 282 cm | 343 cm | 12,450 kg |
Max capacity in the line
- Built for Extremes — Tailored for farmers who demand equipment that performs through long hours and intense use.
- Patented Cyclone Auger Design — Enhances forage circulation and mix consistency using gravity-assisted drop-through blades.
- Heavy-Duty Steel Construction — Rugged frame and augers designed for durability and optimal performance under pressure.
- Proven Gearbox Durability — Heavy-duty planetary gearbox built to Penta’s specifications.
- Optional Conveyor Flexibility — Flip-up or dual discharge conveyors with cast C188 chain options for efficient unloading.

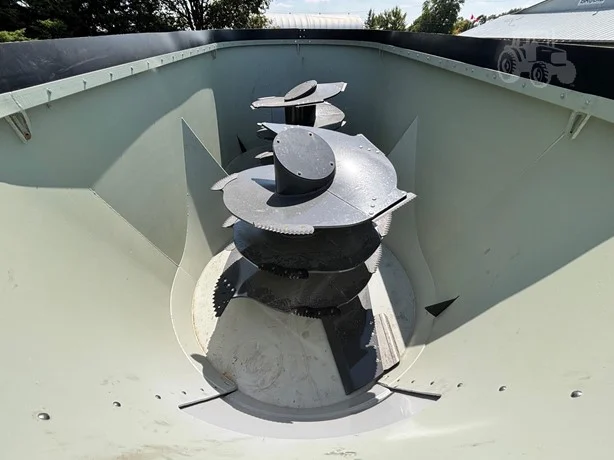

Patented Cyclone Auger
Faster, more even forage circulation
Heavy-Duty Construction
Cold-pressed flighting, thick steel tubs.
Planetary Gearboxes
Power where it counts, backed by 3–5 year warranties
Designed For Farmers by Farmers
We know what a good mix looks like
Onboard Weighing Available
Optional Digi-Star Weigh Log records load weights on the go for precision tracking and efficiency
